Right Angle DC Power Socket to Tinned Stripped Wire Cable -2.1mm x 5.5mm Female Jack for LED, CCTV, DIY Power Supply
Product Description
Technical Specifications
| Parameter | Description |
| Product Name | Right Angle DC Female Socket to Stripped Cable |
| Connector Type | DC Female Jack (Right Angle, 5.5mm OD × 2.1mm ID) |
| Cable Termination | Stripped / Tinned Copper Wires |
| Voltage Rating | 5V / 12V / 24V DC (Max 5A) |
| Cable Length | 15cm / 30cm / 50cm / Custom |
| Wire Gauge | 22AWG / 20AWG / Customizable |
| Jacket Material | PVC Jacket (Flexible and Durable) |
| Polarity | Red = Positive (+), Black = Negative (–) |
| Operating Temp | -20°C ~ +60°C |
Product Introduction
This Right Angle DC Socket to Tinned Wire Cable offers a space-saving solution for powering devices in tight spaces. The 90-degree DC jack connects seamlessly to power supplies while the bare wire end allows direct connection to screw terminals or soldering pads.
Perfect for LED light strips, camera power, Arduino setups, and more.
Product Features
-
90-Degree Angled Plug – Ideal for confined spaces or behind panels
-
Standard Size – 5.5mm x 2.1mm fits most 12V adapters
-
Tinned Wire Ends – Solder-ready or terminal-ready
-
Durable PVC Jacket – Flexible and bend-resistant
-
Easy to Use – No crimping or special tools required
Typical Applications
-
CCTV Security Systems
-
LED Strip Light Installations
-
Arduino / Raspberry Pi Power Input
-
Custom DIY Power Supply Projects
-
Small DC Electronics or Audio Devices
Safety & Usage Notes
-
Match polarity (Red = +, Black = –)
-
Ensure tight contact to avoid power loss
-
Use heat shrink or electrical tape to insulate bare wire ends
-
Keep away from moisture unless protected
OEM & Customization Options
| Option | Description |

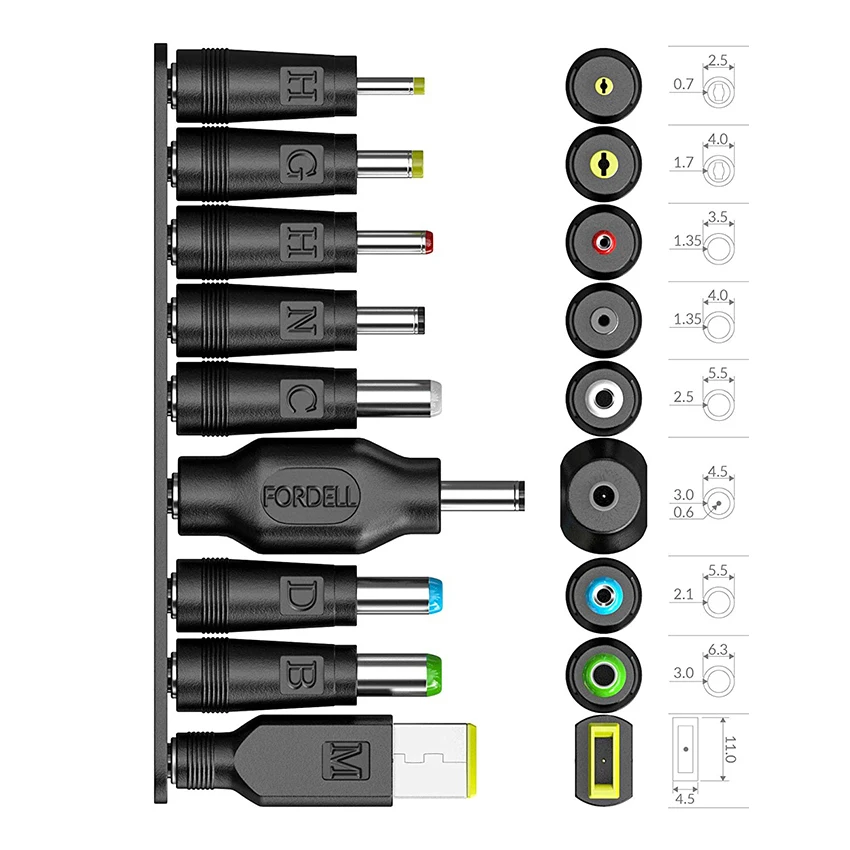

| Connector Size | 5.5×2.1mm / 5.5×2.5mm / 3.5×1.35mm |
| Angle Options | Right Angle / Straight / Panel-Mount |
| Wire Gauge | 22AWG / 20AWG / 18AWG |
| Cable Length | 15cm / 30cm / 1m / Custom |
| Jacket Color | Black / Red / Transparent / Custom |
| Label & Branding | Heat Shrink / Tag / Bag Print |
| Packaging | PE Bag / Label Bag / Gift Box |
FAQ
Frequently Asked Questions (FAQ)
Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Samples ?
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.
Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7. How to ship out the cargo?
A: At your request, by sea, by express, all are available.
